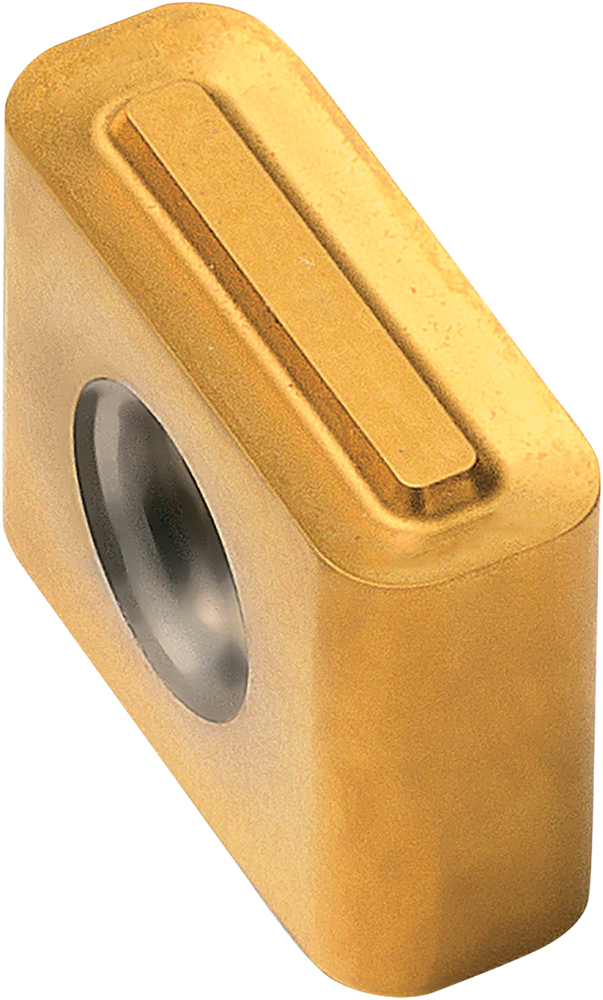

Kyocera LNGX 120916 PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00097
$63.91
Kyocera LNGX 120916 PR1825 Grade PVD Carbide, 90 Degree Rectangle, Negative Rake Angle, Neutral Milling Insert for Finishing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFF
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
1.59 mm
Grade
PR1825
Inscribed Circle (Metric)
9.53
Thickness
6.35 mm
Style
LNGX
Application
Finish Milling
Thickness (Fractional)
1/4
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Insert Length (Decimal)
0.50
Insert Length (Metric)
12.70
ANSI Part Number
LNGX120916PR1825
ISO Part Number
LNGX120916
Rake
Negative
Number of Cutting Edges
4
Insert Size
120916
Chipbreaker
TT
Cutting Range
Finishing
Corner Radius (Decimal)
0.06
Inscribed Circle (Fractional)
3/8
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFF_Finishing_Face_Mills.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
