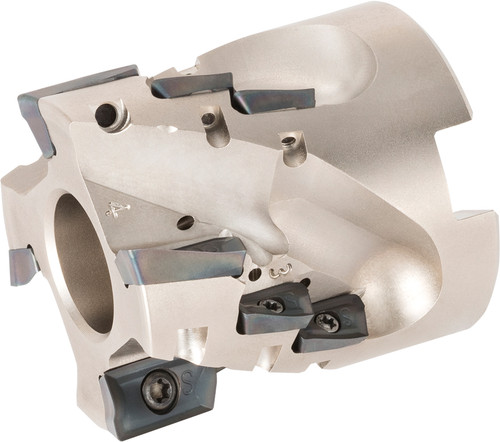

Kyocera MECHT 80R1746TM (MEC Series), Helical Shell Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08507
$3,942.80
Kyocera MECH T80R1746TM (MEC Series), Coolant-Through Helical Shell Mill with a 80.00mm Cutting Diameter for Shouldering, Slotting, Facing Applications

Specifications

Series
MECHT
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
3.15
Cutting Diameter (Metric)
80
Cutting Diameter
80 mm
Number of Flutes
6
Application
Facing, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8864955
ANSI Part Number
MECHT80R1746TM
ISO Part Number
MECHT80R-17-4-6T-M
Material Group / Grade
GR99
Tool Style
MECHT
Cutting Diameter Minimum (Decimal)
3.15
Number of Inserts
24
Hand of Holder
Right
Max. Depth Of Cut
60 mm
Maximum Depth of Cut (Decimal)
2.36
Cutting Diameter Minimum (Metric)
80
Cutting Maximum (Decimal)
3.15
Connection Bore Diameter (Decimal)
1.26
Connection Bore Diameter (Metric)
32
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MECHT_Helical_Milling_for_Titanium_Alloy.pdf
