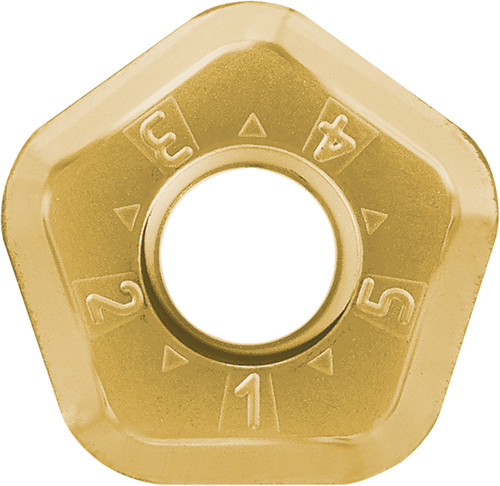

Kyocera PNMU 1205ANERGH CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA05052
$39.74
Kyocera PNMU 1205ANERGH CA6535 Grade CVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (S) Heat-Resistant Alloy and (M) Martensitic Stainless Steel

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(S) Heat-Resistant Alloy
Grade
CA6535
Thickness
6.17 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Decimal)
0.24
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.71
Insert Length (Metric)
17.98
Old Material Number
8842393
ANSI Part Number
PNMU1205ANERGHCA6535
ISO Part Number
PNMU1205ANER-GH
Rake
Negative
Number of Cutting Edges
10
Insert Size
1205
Chipbreaker
ANER-GH
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
