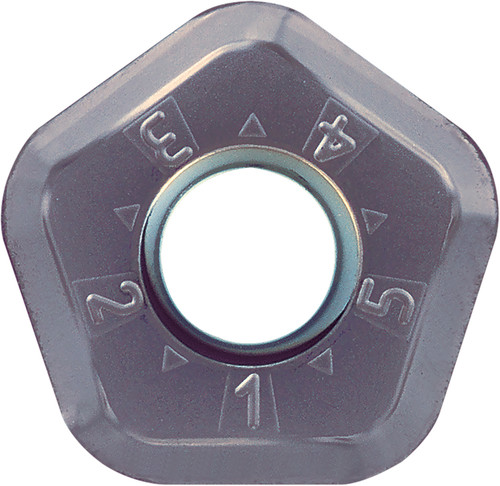

Kyocera PNMU 1205ANERGH PR1825 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLT00122
$41.73
Kyocera PNMU 1205ANERGH PR1825 Grade PVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (P) Carbon/Alloy Steel, (P) Mold Steel and (M) Austenitic Stainless Steel

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
PR1825
Thickness
6.17 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Decimal)
0.24
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.71
Insert Length (Metric)
17.98
ANSI Part Number
PNMU1205ANERGHPR1825
ISO Part Number
PNMU1205ANER-GH
Rake
Negative
Number of Cutting Edges
10
Insert Size
1205
Chipbreaker
ANER-GH
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
