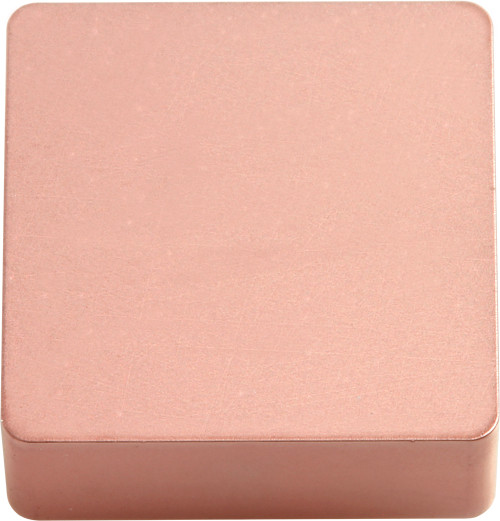

Kyocera Turning Insert SNM432 CA310: TMC05370

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC05370
$29.70

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, square shape, negative rake, 8 cutting edges, medium-roughing cutting range, clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMC05370.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
90
ANSI Designation
SNM432CA310
Insert Style
SNM
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Clamp
Insert Size
432
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
CA310
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Workpiece Material
Cast Iron
Cutting Range
Medium-Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
ISO Designation
SNMN120408
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
