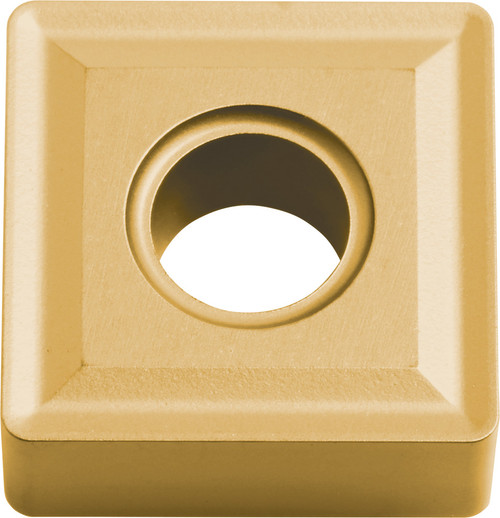

Kyocera SNMG 322 CA525 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAC05071
$14.06
Kyocera SNMG 322 CA525 Grade CVD Carbide, 0 Degree, Square, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
90 degrees
Thickness
1/8 Inch
Style
SNMG
Application
Boring, Chamfering, External Turning, Facing
Shape
90 Degree Square
Insert Holding Method
Screw or Clamp
Size
322
Old Material Number
8841288
ANSI Part Number
SNMG322CA525
ISO Part Number
SNMG090308
Rake
Negative
Material Group / Grade
CA525
Corner Radius (Metric)
0.80
Number of Cutting Edges
8
Thickness (Metric)
3.18
Cutting Range
Roughing
Usage Classification
Light Interruption
Insert Included Angle
90 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
