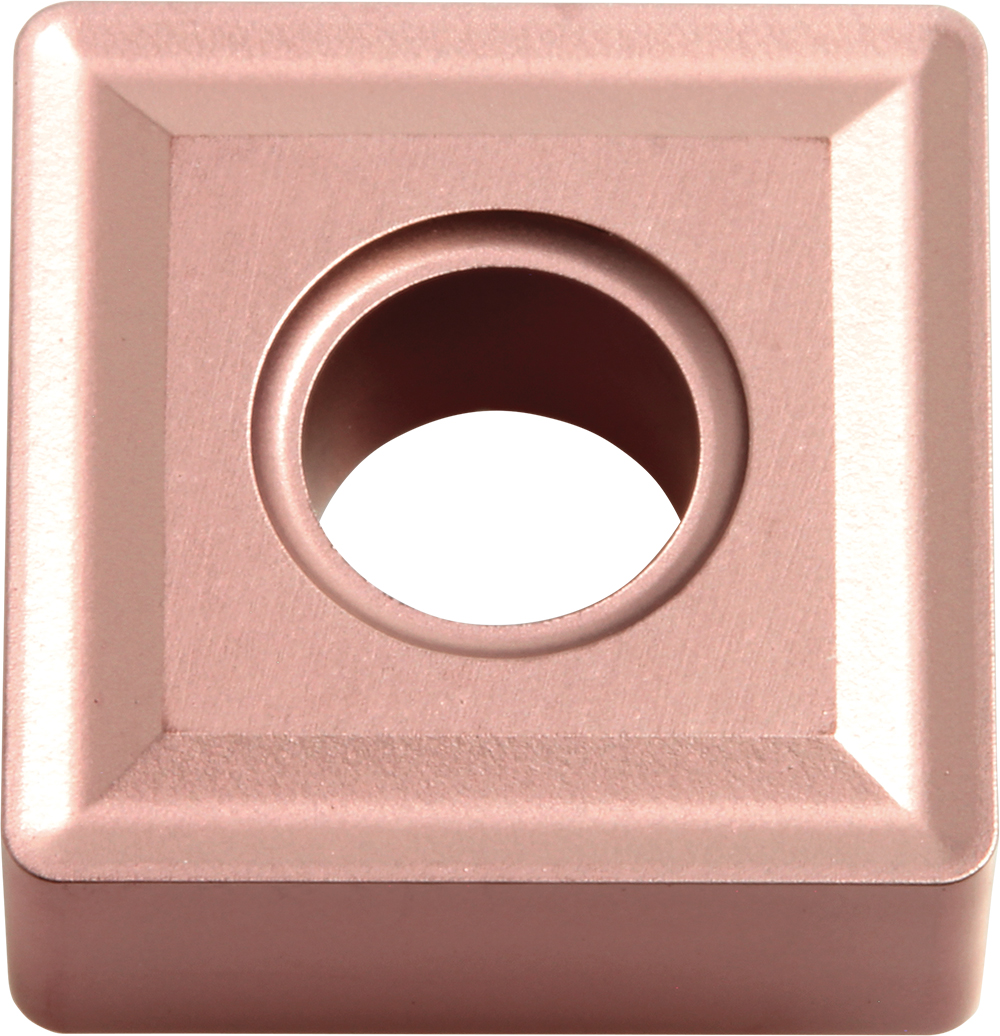

Kyocera Turning Insert SNMG434 TN620: TSR05203

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR05203
$17.46

Kyocera Turning Insert SNMG434 TN620, manufacturer part number TSR05203.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/16 in (1.60 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8862667; Rake: Negative; Number of Cutting Edges: 8; Cutting Range: Roughing; Usage Classification: Continuous to Light Interruption; Insert Size: 434; Hand Direction: Neutral; Insert Style: SNMG; ANSI Designation: SNMG434TN620; ISO Designation: SNMG120416; Included Angle: 90 degrees; Machining Operations: Boring, Chamfering, External Turning, Facing; Insert Grade: TN620; Workpiece Material: Steel; Insert Shape: Square.

Material: Cermet. Coating/Finish: Uncoated. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/16
Included Angle
90
ANSI Designation
SNMG434TN620
Insert Style
SNMG
Insert Thickness (Metric)
4.76
Insert Shape
Square
Insert Holding Method
Screw or Clamp
Insert Size
434
Old Material Number
8862667
Machining Operations
Boring, Chamfering, External Turning, Facing
Insert Grade
TN620
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.60
Number of Cutting Edges
8
Workpiece Material
Steel
Cutting Range
Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
ISO Designation
SNMG120416
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
