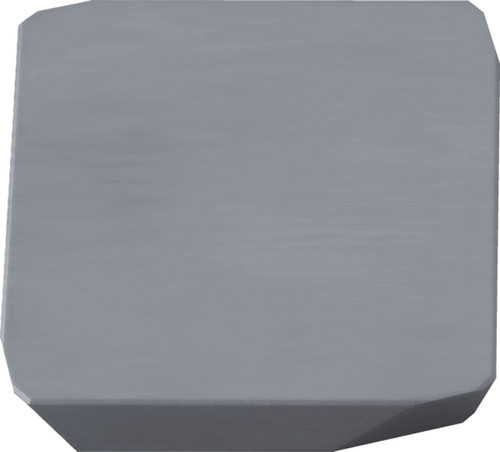

Kyocera SPCN 63EETR1 TN100M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSP00760
$62.28
Kyocera SPCN 63EETR1 TN100M Grade Uncoated Cermet, Square, Positive Rake Angle, Right-Hand Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel

Specifications

Series
GPM
Unit of Measure
Metric
Cutting Direction
Right
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
TN100M
Inscribed Circle (Metric)
19.05
Thickness
4.76 mm
Style
SPCN
Application
Chamfering, Facing, Shouldering
Thickness (Fractional)
3/16
Shape
90 Degree Square
Insert Holding Method
Clamp
Old Material Number
8813777
ANSI Part Number
SPCN63EETR1TN100M
ISO Part Number
SPCN1904EETR1
Rake
Positive
Number of Cutting Edges
1
Insert Size
63
Chipbreaker
EETR1
Cutting Range
Finishing
Inscribed Circle (Fractional)
3/4
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
Kyocera SPCN 63EETR1 TN100M Grade Uncoated Cermet, Indexable Milling Insert
$62.28
