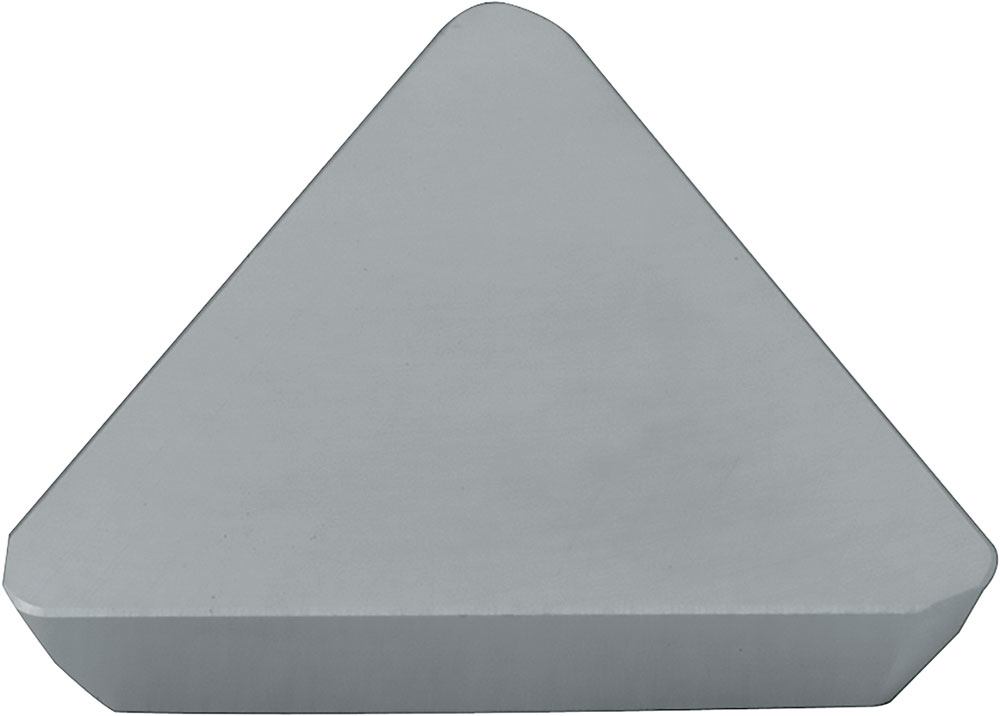

Kyocera TEKN 32PTTR PR1225 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKB05823
$27.09
Kyocera TEKN 32PTTR PR1225 Grade PVD Carbide, Triangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Stainless Steel

Specifications

Series
MTES
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel|(M) Stainless Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1225
Inscribed Circle (Metric)
9.53
Thickness
3.18 mm
Style
TEKN
Application
Facing, Shouldering, Slotting
Thickness (Fractional)
1/8
Shape
60 Degree Triangle
Insert Holding Method
Clamp
Old Material Number
8833971
ANSI Part Number
TEKN32PTTRPR1225
ISO Part Number
TEKN1603PTTR
Rake
Positive
Number of Cutting Edges
3
Insert Size
32
Chipbreaker
PTTR
Cutting Range
Roughing
Inscribed Circle (Fractional)
3/8
Insert Included Angle (Degree)
60 degrees
Pack quantity
10
Kyocera TEKN 32PTTR PR1225 Grade PVD Carbide, Indexable Milling Insert
$27.09
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
