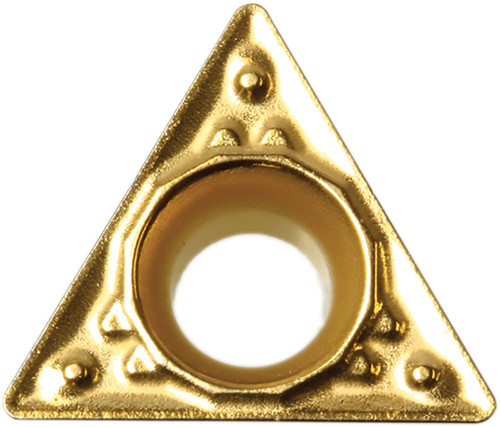

Kyocera Turning Insert TPMT2205HQ CA025P: TMH00477

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00477
$18.89

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, triangle shape, positive rake, 3 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMH00477.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
IC Size (Metric)
6.35
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TPMT
Insert Thickness (Fractional)
1/8
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
2205
Insert Thickness (Metric)
3.18
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
CA025P
Chip Breaker Type
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
TPMT110302HQ
Workpiece Material
Steel
ANSI Designation
TPMT2205HQCA025P
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA025P_CVD_Coated_Carbide_for_Steel.pdf
Coating Process
CVD
