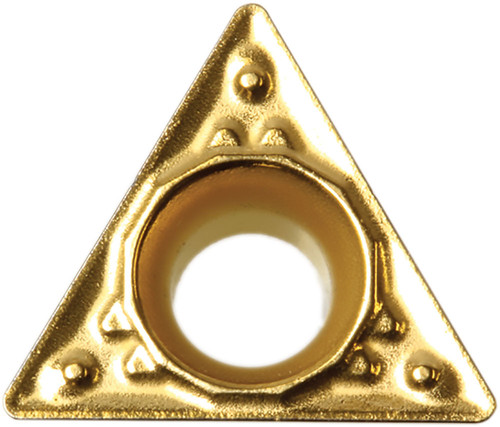

Kyocera Turning Insert TPMT2205HQ CCX: TMJ40079

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ40079
$18.89

Kyocera Turning Insert TPMT2205HQ CCX, manufacturer part number TMJ40079.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8864270; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 2205; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT2205HQCCX; Chip Breaker Type: HQ; ISO Designation: TPMT110302HQ; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CCX; Workpiece Material: Steel, Cast Iron; Insert Shape: Triangle; Coating Process: CVD.

Material: Cermet. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN/Al2O3/TiN
IC Size (Metric)
6.35
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TPMT
Insert Thickness (Fractional)
1/8
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
2205
Old Material Number
8864270
Insert Thickness (Metric)
3.18
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
CCX
Chip Breaker Type
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
ISO Designation
TPMT110302HQ
Workpiece Material
Steel, Cast Iron
ANSI Designation
TPMT2205HQCCX
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CCX_CVD_Cermet.pdf
Coating Process
CVD
