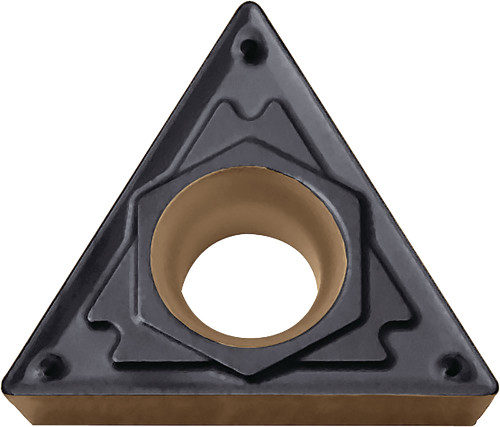

Kyocera Turning Insert TPMT2205HQ CA125P: TMK00412

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMK00412
$18.89

Kyocera Turning Insert TPMT2205HQ CA125P, manufacturer part number TMK00412.

Specifications: IC Size: 1/4 in (6.35 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 0.0080 in (0.20 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 2205; Hand Direction: Neutral; Insert Style: TPMT; ANSI Designation: TPMT2205HQCA125P; Chip Breaker Type: HQ; ISO Designation: TPMT110302HQ; Included Angle: 60 degrees; Machining Operations: Back Boring, Boring, Copying, External Turning, Internal Facing; Insert Grade: CA125P; Workpiece Material: Steel; Insert Shape: Triangle; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
IC Size (Metric)
6.35
Included Angle
60
Corner Radius (Decimal)
0.0080
Insert Style
TPMT
Insert Thickness (Fractional)
1/8
Insert Shape
Triangle
Insert Holding Method
Screw or Clamp
Insert Size
2205
Insert Thickness (Metric)
3.18
Machining Operations
Back Boring, Boring, Copying, External Turning, Internal Facing
Rake
Positive
IC Size (Fractional)
1/4
Corner Radius (Metric)
0.20
Number of Cutting Edges
3
Insert Grade
CA125P
Chip Breaker Type
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous to Light Interruption
ISO Designation
TPMT110302HQ
Workpiece Material
Steel
ANSI Designation
TPMT2205HQCA125P
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
Coating Process
CVD
