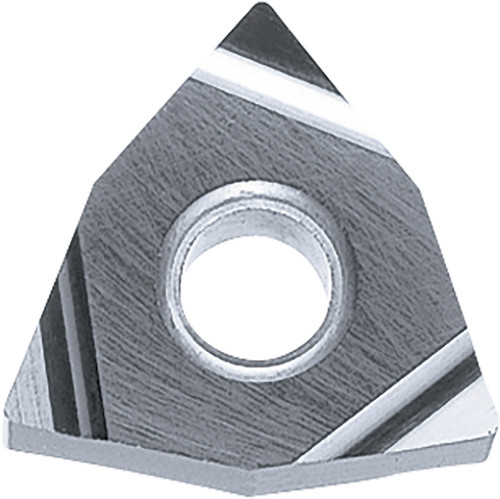

Kyocera WNGG 3305LS KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE03652
$27.42
Kyocera WNGG 3305LS KW10 Grade Uncoated Carbide, 0 Degree, Trigon, Negative Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNGG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
3305
Old Material Number
8816280
ANSI Part Number
WNGG3305LSKW10
ISO Part Number
WNGG060402L-S
Rake
Negative
Material Group / Grade
KW10
Corner Radius (Metric)
0.20
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
S
Cutting Range
Finishing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Molded_Sharp_Edge_Chipbreaker.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Small_Part_Tooling_Solutions.pdf
Kyocera WNGG 3305LS KW10 Grade Uncoated Carbide, Indexable Turning Insert
$27.42
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
