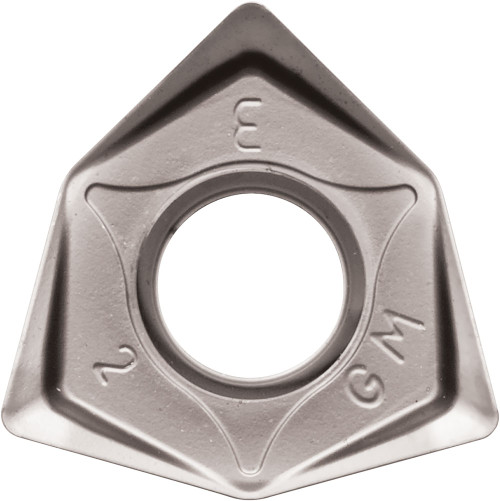

Kyocera WNMU 080604ENGM TN620M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TST09305
$29.79
Kyocera WNMU 080604ENGM TN620M Grade Uncoated Cermet, Trigon, Negative Rake Angle, Neutral Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel

Specifications

Series
MFWN
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
TN620M
Inscribed Circle (Metric)
14.02
Thickness
6.65 mm
Style
WNMU
Application
Facing, Shouldering, Slotting
Thickness (Decimal)
0.26
Shape
80 Degree Trigon
Insert Holding Method
Screw
Old Material Number
8860941
ANSI Part Number
WNMU080604ENGMTN620M
ISO Part Number
WNMU080604EN-GM
Rake
Negative
Number of Cutting Edges
6
Insert Size
080604
Chipbreaker
EN-GM
Cutting Range
Finishing
Insert Included Angle (Degree)
80 degrees
Inscribed Circle (Decimal)
0.55
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/TN620M_Cermet_Milling.pdf
