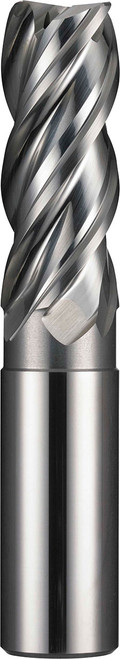

SGS 12.00mm Dia, 4 Flute, Square End End Mill - 44630

Kyocera SGS

No reviews yet Write a Review
SKU:
KYO-44630
$418.62
SGS 12.00mm Dia, 30.00mm LOC, 12.00mm Shank Dia, 4 Flute, Coolant-Through, 41 Degree Helix, Ti-NAMITE-B (TIB2) Coated, Series APF, S-Carb APF, Square End End Mill - 44630

Specifications

Series
APF
Unit of Measure
Metric
Diameter
12 mm
Length of Cut
30 mm
Shank Size
12 mm
Number Of Flutes
4
Shank Type
Straight
Overall Length
83 mm
Cutting Direction
Right
Material
Solid Carbide
Coating/Finish
TIB2
Cutting Diameter (Decimal)
0.48
Length of Cut (Decimal)
1.19
Shank Diameter (Decimal)
0.48
Overall Length (Decimal)
3.27
Flute Type
Spiral
Helix Angle
38/41 degrees
End Configuration
Square End
Primary Workpiece Material
(N) Non-Ferrous Materials
Neck Diameter (Decimal)
0.45
Neck Diameter (Metric)
11.38
Cutting Diameter Tolerance (Decimal)
+0.0004/-0.0020
Cutting Diameter Tolerance (Metric)
+0.010/-0.050
Shank Diameter Tolerance (ISO)
h6
Coolant Option
Internal Coolant
Coating Description
Ti-NAMITE-B (TIB2)
Additional Geometry
Right Hand Cut Direction (RHC)
Rake Angle
Positive
High Performance
Yes
Weldon Flat
No
Variable Helix
Yes
Center Cutting
Yes
Chip Breaker
No
SGS 12.00mm Dia, 4 Flute, Square End End Mill - 44630
$418.62
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
